The CM-U403C is a lightweight and portable plug-and-play USB visualizer, ideal for your remote learning. It delivers a clear image of up to 4K resolution. By switching on the built-in LED light, the object you are demonstrating is always crystal clear! Showing your practice book or seeing the process of solving math questions to the remote teacher and classmates in real-time can be intuitive and easy.
One Press to Focus and Flip
The CM-U403C is suitable for use in class and video conferencing. You can just single press one button to flip the live image and focus your face, textbook, and any objects at will.

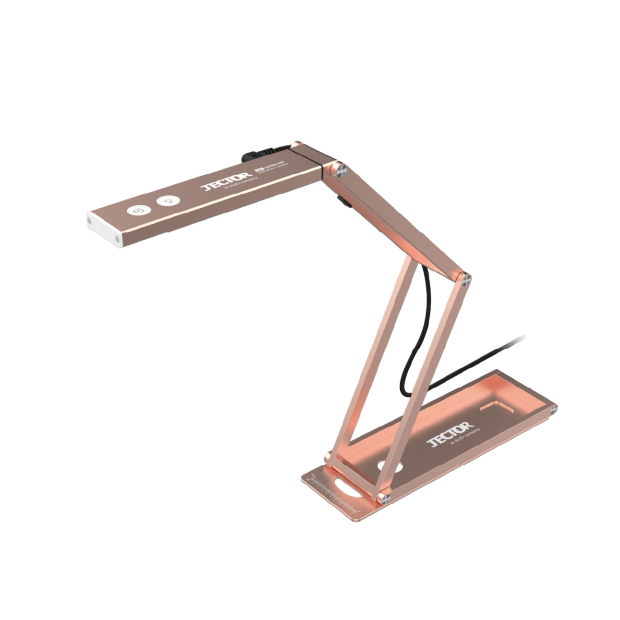

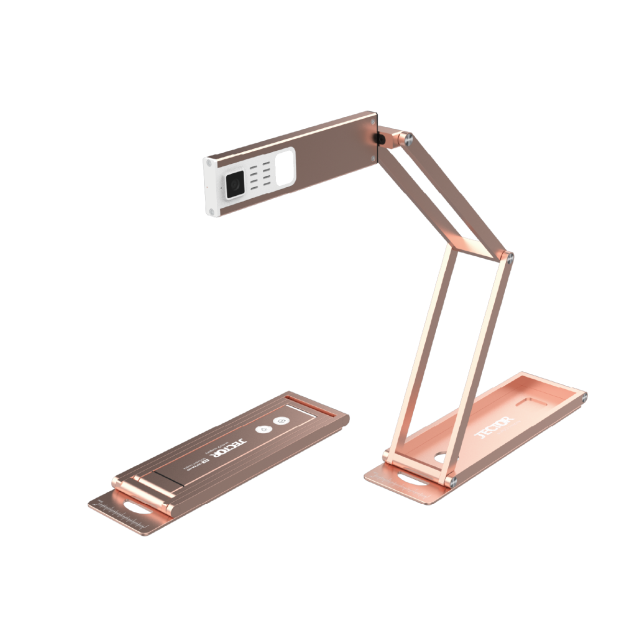

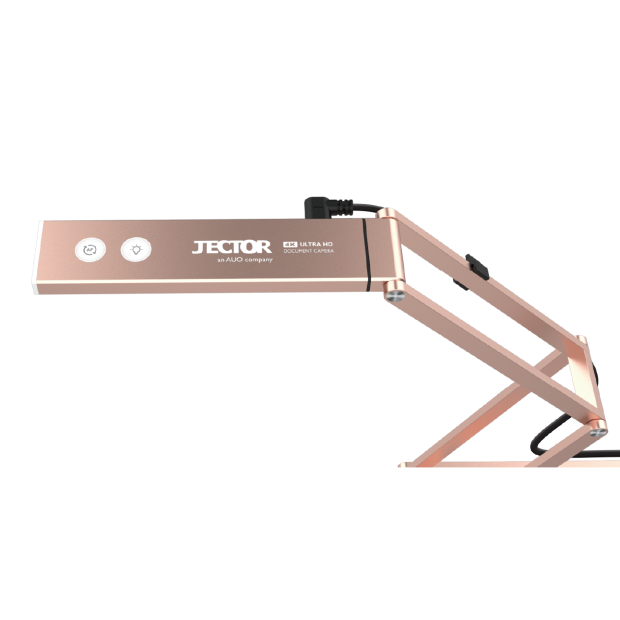

Lightweight & Foldable Document Camera
Capable of shooting A3-sized images
Adjusting the height of the tripod adjusts the shooting range, supporting up to A3 size images, giving you ample space to display any teaching material when teaching from a distance.

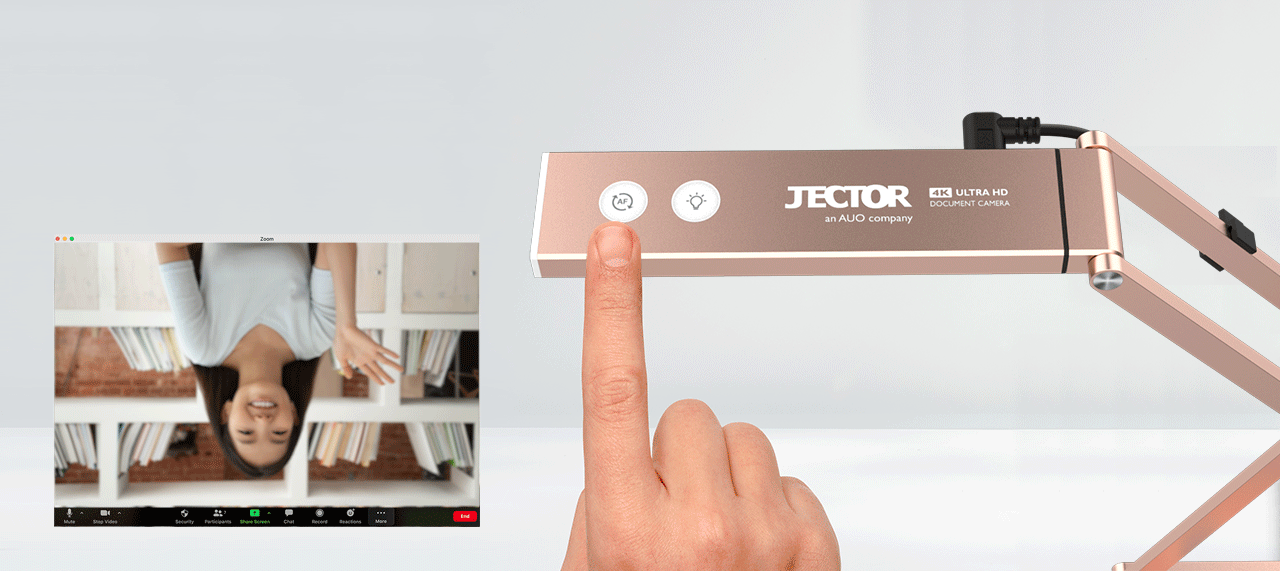

One-touch focus and flip
Always keep your subject in the right orientation. A simple long press switches between 0° and 180° shooting angles and allows you to focus on your face, textbook, or any object. Perfect for classrooms and video conferencing.
Compatible with various communication software
The device is compatible with various communication and video conferencing software, such as Google Meet, Teams, and Zoom.
software: ShareCam
ShareCam software provides various writing and annotation tools, screen comparison, picture-in-picture recording, and whiteboard functionality.

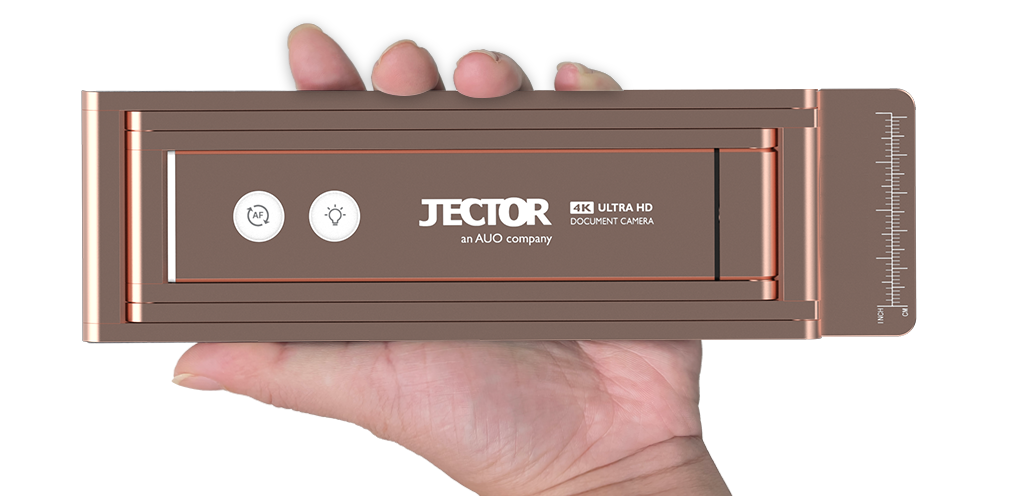

Lightweight and portable, powerful features

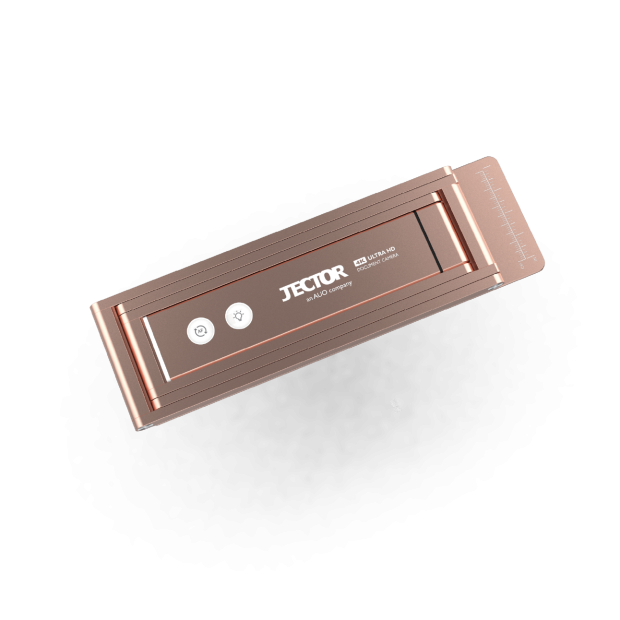

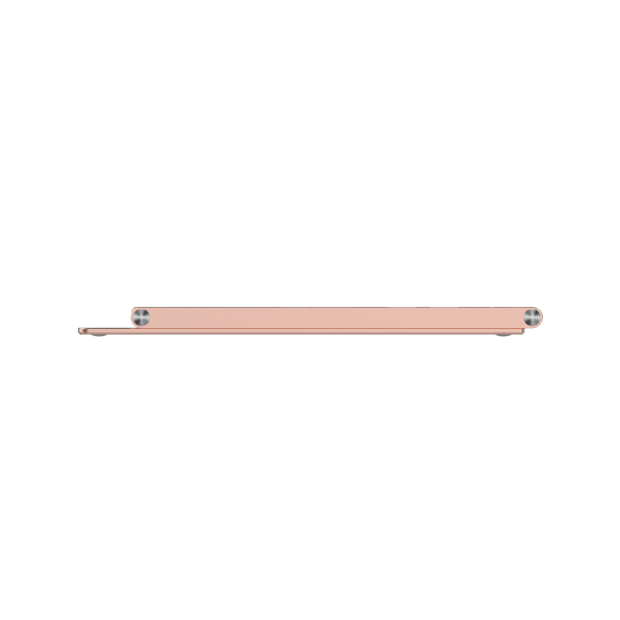

The unique fully foldable design, folded down to only 1.3 cm thick, combined with precise design and durable materials, results in a device weighing only 380g, allowing you to easily slip it into your pocket and take it with you.
CM-U403C Specification
| Model | CM-U403C | ||
|---|---|---|---|
| Max. Output Resolution / FPS | 3840x2880 (To Capture A3 Image) | ||
| 3840x2160 @30fps | |||
| 1920x1080 @60fps | |||
| 1280 x 720 @30fps | |||
| Zoom | Sensor Zoom 3X | ||
| Max. Shooting Area | 430mm x 320mm (at output 4:3 mode ) | ||
| Video Compression | MJPG / YUY2 | ||
| Focus | Auto Focus | ||
| Lamp | LED | ||
| Image Rotation | 0° / 180° | ||
| Support Power Line Frequency | 50/60 Hz | ||
| Microphone Sensitivity | 1kHz(0dB=1V/Pa) Min-45 Nom-42 Max-39 dB | ||
| 麥克風規格 | 靈敏度 S 94dB SPL @1KHz Min-29 Tye-26 Max-23 dBFS | ||
| Connectivity | Micro USB to Type-A 2.0 | ||
| Powered by | USB 3.0 Type-C (5V/900mA) | ||
| Protocol | UVC；UAC；Plug-and-Play | ||
| wire | Micro USB to Type-A 1.5 m/ 4.9ft | ||
| Dimensions | 195x66x13mm / 7.7×2.6×0.5 | ||
| Net Weight | 360g / 12.7 oz | ||
| Support Operating System (UVC) |
Windows® 10, Windows 8, Windows 7 macOS® 10.10 or above Chrome OS |
||
| ＊The contents of this document are subject to change without notice | |||
相關下載：
> CM-U403C software for Windows
> CM-U403C software for MAC Minimum system requirements: macOS 10.15 or later (compatible with Intel and M1 Mac)
> CM-U403C User Manual
> CM-U403C flyer
