AVT-U Series Interactive Flat Panels (IFPD)
AVT-U8610 | AVT-U7510 | AVT-U6510
Android 14 | Google EDLA Certified | Intuitive Communication for Unlimited Thinking | Secure, Flexible & Future-Ready
Shaping the future of education and business collaboration, the Avocor AVT-U Series integrates intelligence, high efficiency, and clear visual experiences into a single device. It provides a simple, convenient, and zero-learning-curve interactive platform for classroom teaching, business meetings, and video collaboration. The AVT-U series is certified by Google EDLA and comes fully equipped with front-facing speakers and an 8-array microphone for precise audio pickup.
Google Play Store Support
With official Google EDLA certification, the display seamlessly integrates teachers' frequently used applications. It natively supports tools like Google Classroom and Collaborative Whiteboards, making cloud-based teaching completely effortless.
4K Resolution & High-Performance Octa-Core Processor
Touch & Audio
Smart Education
Seamlessly combining teaching with the Google ecosystem, this EDLA-certified Avocor educational interactive display provides a highly efficient, secure, and highly interactive teaching environment. It helps actively facilitate collaboration, boost efficiency, and streamline classroom management.
Intuitive & Easy-to-Use Interactive Experience

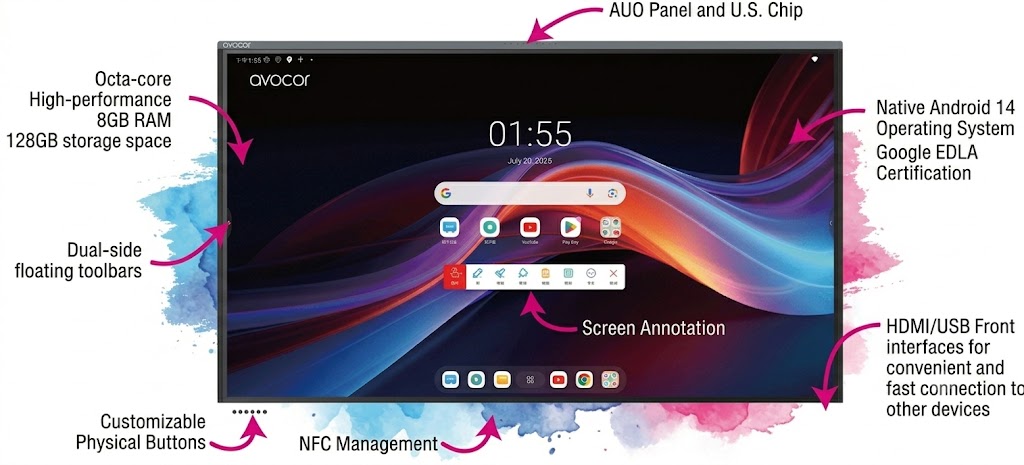

Featuring a 4K ultra-high-resolution screen, Android 14 OS, an octa-core processor, and Google EDLA certification. The high-precision infrared touch supports up to 50 touch points. With 20W dual front-facing speakers, the audio is crisp and loud. It also supports wireless device screen mirroring, multi-split screens, and features a built-in remote management platform for easy cloud administration.

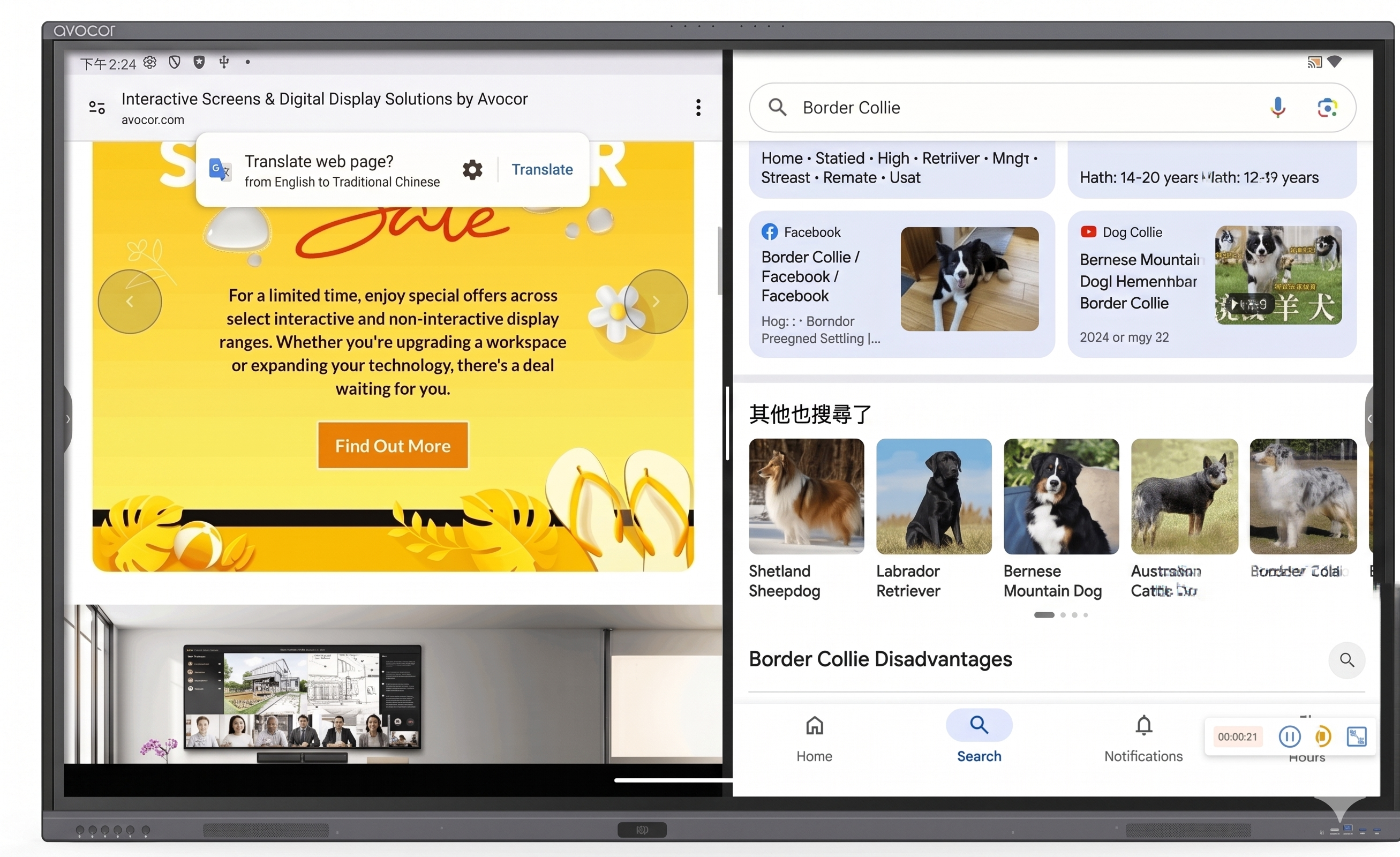

AI Smart Applications: Circle & Go
Maximize learning efficiency with "Circle & Go" (Circle to Search). Simply circle images or text on the screen to instantly explore related information, such as Wikipedia entries, providing real-time supplementary content for highly efficient learning and meetings.

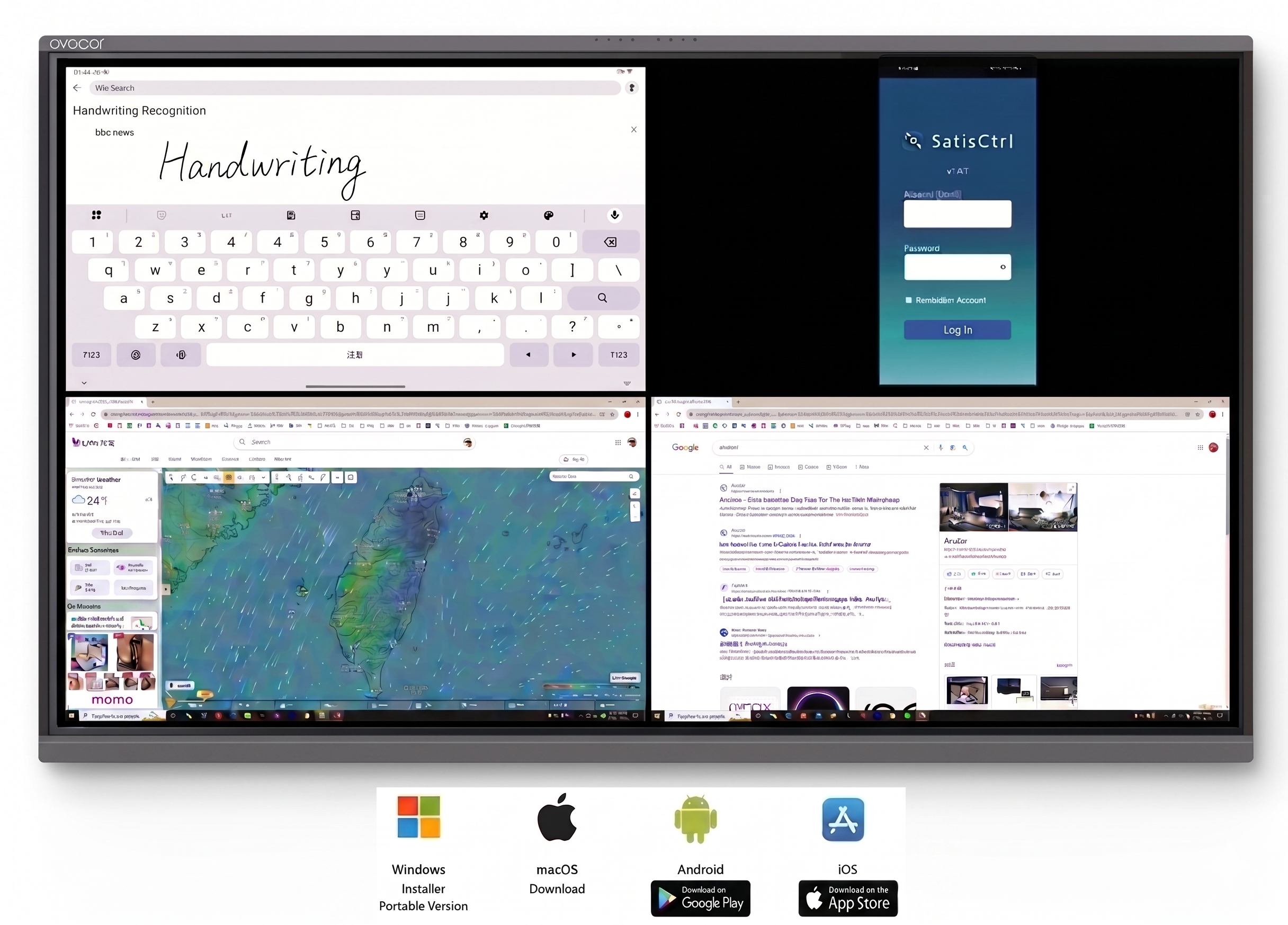

Highly Interactive Learning Environment: Whiteboard
The digital whiteboard function provides an optimized writing experience and supports effortless sharing. Flexible features include Picture-in-Picture (PiP), multi-tasking windows, and split screens. You can easily record teaching or meeting sessions, making it the ideal choice for hybrid learning. Includes practical teaching widgets like timers and calculators.
Comfort & Health with Dual Audio/Visual Enjoyment
The AVT-U Series utilizes an anti-glare glass panel to effectively reduce light reflections and glare, providing a comfortable viewing experience. The 178° wide viewing angle ensures everyone in the room can clearly see the screen content. Built-in smart eye-care technology offers dual protection for safe usage. The front surround speakers deliver clear, immersive audio, while the top-mounted 8-array microphone ensures precise voice capture for flexible teaching scenarios.

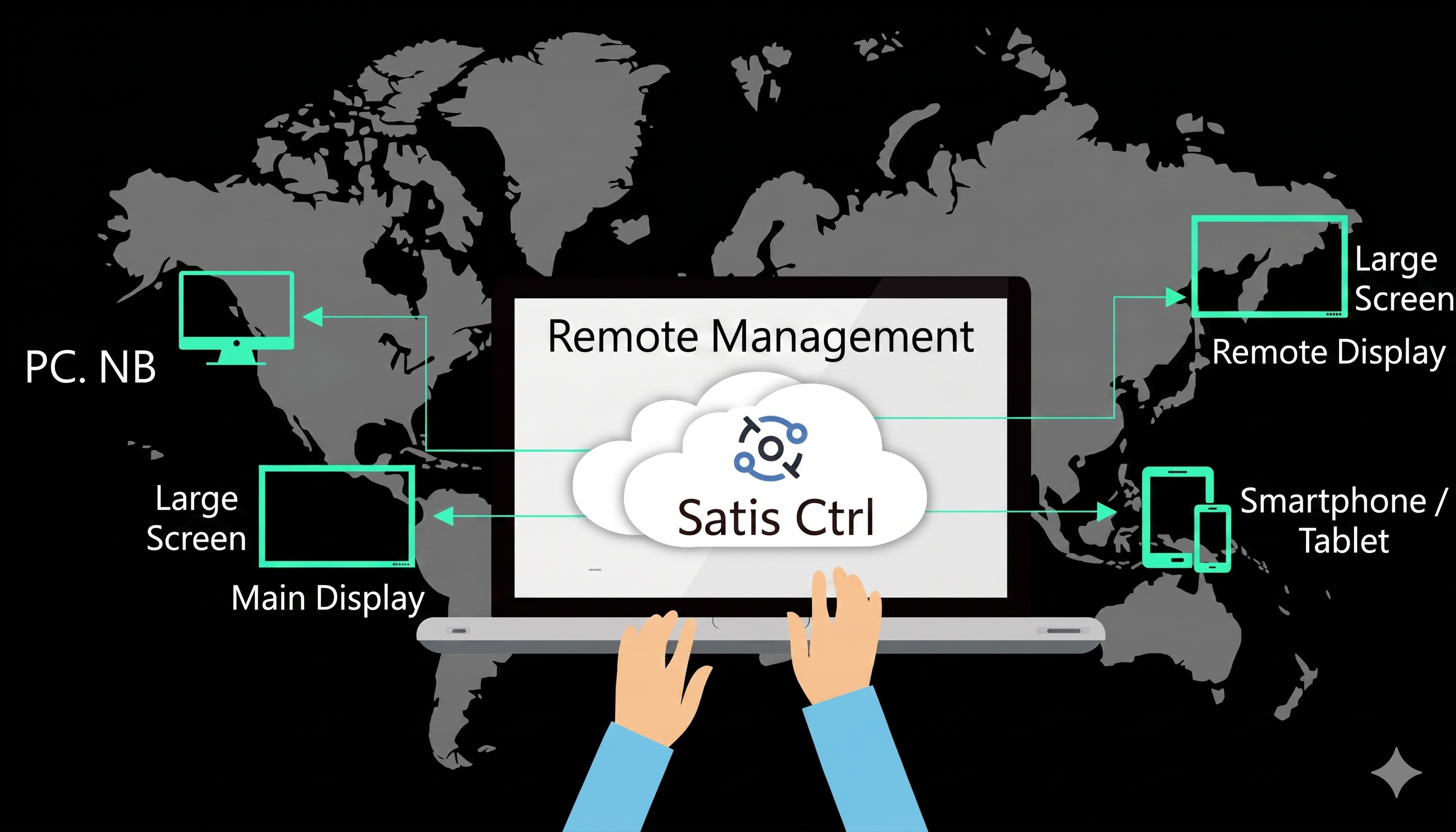

SatisCtrl Centralized Device Management
The SatisCtrl cloud management platform allows administrators to easily manage registered devices. You can remotely control power on/off and restarts. The built-in messaging, multimedia, and alert broadcast functions allow administrators to quickly publish information to devices everywhere, effectively reducing maintenance costs. It not only enhances the efficiency of daily device management and troubleshooting but also automates workflows.
Model AVT-U6510 AVT-U7510 AVT-U8610 Effective Screen Size 65" (64.5") 75" (74.5") 86" (85.6") Display Area (H × V) 1428.48 × 803.52 mm 1649.664 × 927.936 mm 1895.04 × 1065.96 mm Backlight Type D-LED Resolution 3840 × 2160 pixels (RGB) Brightness 400 cd/m² (typ.) / 450 cd/m² (max.) Contrast Ratio 1200 : 1 (Typical); Dynamic Contrast: 50000 : 1 Response Time 8 ms (typ.) Refreshing Frequency 60 Hz Viewing Angle 178° (H) / 178° (V) Color Gamut 72% NTSC (typ.) Display Colors 1.07B (10bit) OS Android 14，RAM / DDR4 8GB (16G optional)，ROM 128GB (256G optional) Audio Output Power 2 × 20W Speaker Microphones 8 Array Wi-Fi / Bluetooth Wi-Fi 6；Operating Frequency 2.4GHz / 5GHz；BT 5.2 NFC Supporting ISOs ISO / IEC 14443 @ 13.56MHz；ISO / IEC 15693 @ 13.56MHz；Support Android and Windows Dimensions (W × D × H) 1488.4 × 97.3 × 907.5 mm 1709.4 × 97.3 × 1031 mm 1957 × 97.1 × 1170.8 mm Package Dimensions (W × D × H) 1628 × 185 × 1020 mm 1863 × 185 × 1155 mm 2110 × 185 × 1291 mm Net weight 30 kg 40 kg 50.5 kg Gross weight 36.5 kg 49 kg 63 kg VESA 600 × 400 mm 800 × 400 mm 800 × 600 mm Front I/O HDMI IN 2.0*1, TOUCH 3.0*1, USB Type-C*1, (up to 65W/DP-Alt/Audio/Video/USB2.0/Touch/Mic/Camera/LAN Network Sharing), USB 3.0*2 Board I/O HDMI IN 2.0*2, USB Type-C*1, (up to 15W /DP-Alt/Audio/Video/USB2.0/Touch/Mic/Camera/LAN Network Sharing), HDMI OUT 2.0*1, DP IN*1, USB 2.0*1, USB 3.0*2, TOUCH 3.0*1, VGA IN*1, Audio in*1, SPDIF*1, Audio Out*1, RS232*1, LAN(RJ45)*2, TF Card*1, OPS Slot *1 Tempered Glass AG (Anti-Glare) Optical Anti-Explosion Tempered Glass, 9H Hardness, 3.2mm Thickness, High Bonding, Transparency >88%, Glass Haze 2%~5% Sensing Type Infrared Touch Frame Infrared Touch 50 Points. Multi-touch supported on Windows 10/8/7 & Android. Single-touch on Windows XP, Linux, Mac OS X, Chrome OS. Touch Accuracy ±1mm Response Time ≤8ms Temperature Operating: 0°C ~ 40°C / Storage: -20°C ~ 60°C Humidity Operating: 10% ~ 90% RH / Storage: 10% ~ 90% RH Power Requirements AC 100 V ~ 240 V, 50/60 Hz Standby Condition <0.5W Multimedia Format Support Images: JPEG, BMP, PNG
Video: MPEG1, MPEG2, MPEG4, MOV, FLV (Supports 1080P / 4K HD Decoding)
Audio: MP3, M4A, AACaccessories 3M AC Power Cable (Provided by region) ×1, Type-C Cable (1.8m-2m) ×1, 3M USB A-B Cable ×1, 3M HDMI Cable ×1, Stylus ×2, Remote Control ×1, NFC Card ×1
The specifications and equipment listed above are based on actual production units. The company reserves the right to make modifications without prior notice.
