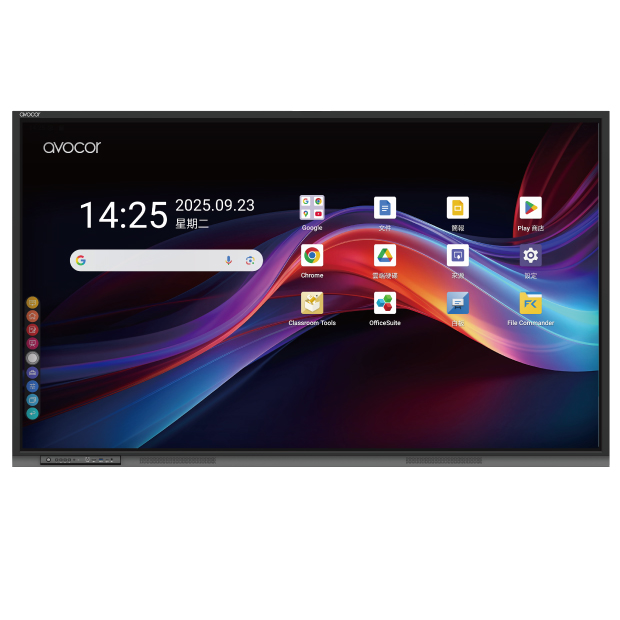

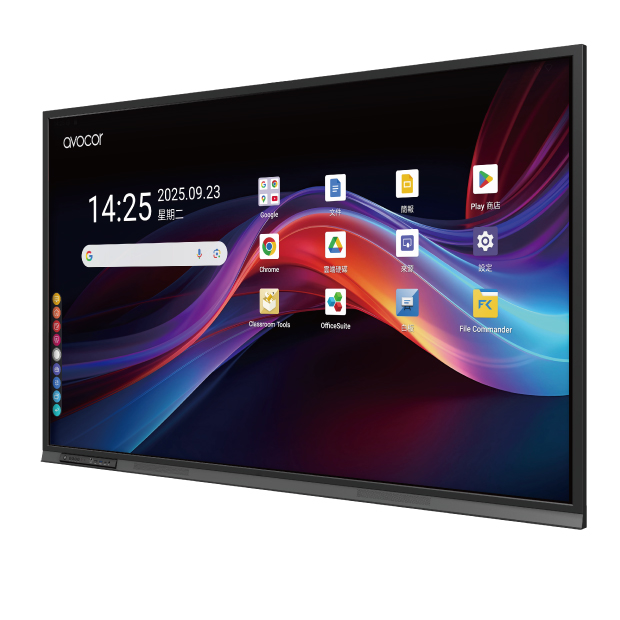

AVT-V Series Interactive Touch Display
Android 14 | Google EDLA Certified | Rich Interactive Teaching Experience
AI Intelligence | Smooth Writing
AVT-V861T | AVT-V8610
The Avocor AVT-V Series is a premium, future-ready interactive display designed to empower teachers and boost student engagement in the classroom. Certified by Google EDLA, the AVT-V series allows educators to effortlessly bring their favorite applications from the Google Play Store straight into their lessons. Combined with an immersive 2.1-channel speaker system that ensures crystal-clear audio, the AVT-V series delivers a seamless, flexible, and modern teaching and learning experience.
Core Features
Google Play Store Support
With official Google EDLA certification, the display seamlessly integrates teachers' go-to applications. It natively supports tools like Google Classroom and Collaborative Whiteboards, making cloud-based teaching completely effortless.

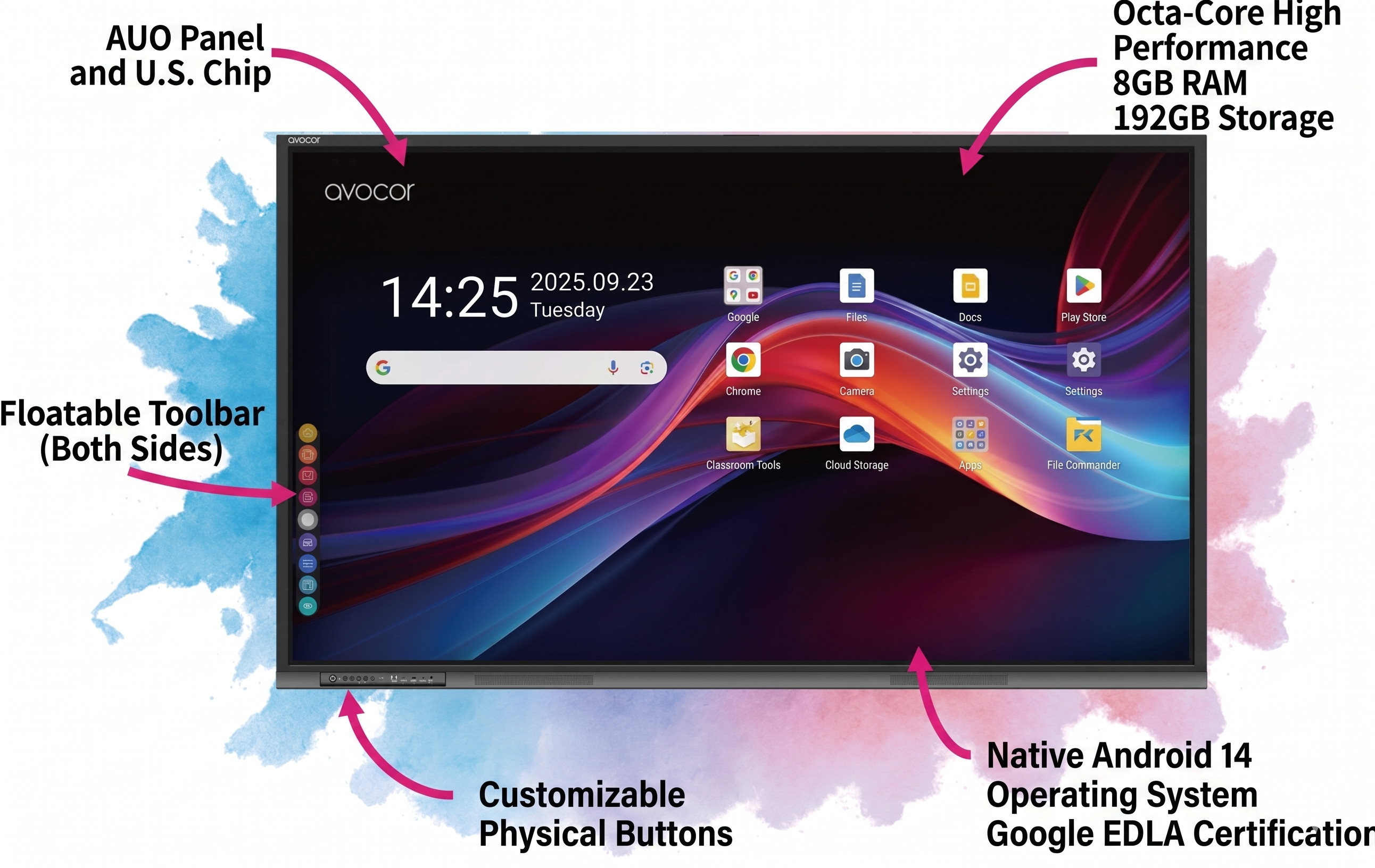

4K Resolution & High-Performance Octa-Core Processor
The AVT-V Series features a built-in octa-core processor that executes various applications with high efficiency. It effortlessly integrates with any device or system platform, packed with 8GB RAM and 192GB of internal storage.
Touch & Audio
Equipped with advanced touch technology, it delivers a fluid, natural writing and collaborative experience. This is paired with a powerful 2.1-channel sound system to create a truly immersive audio-visual environment.

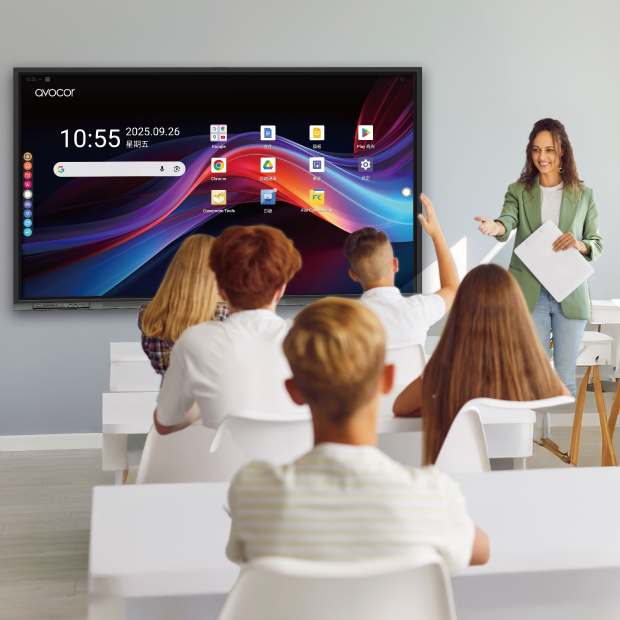

Embrace Smart Education
Seamlessly combining teaching with the Google ecosystem, this EDLA-certified Avocor educational interactive touch display provides a safer, highly efficient, and highly interactive environment. It actively facilitates collaboration, boosts productivity, and simplifies classroom management.
One-Touch Command at Your Fingertips
Access features instantly to improve teaching and meeting efficiency. The front panel features a customizable "C-key" that can be mapped to frequent actions—such as taking screenshots, switching signal sources, or launching favorite apps—reducing operational steps for smoother presentations.

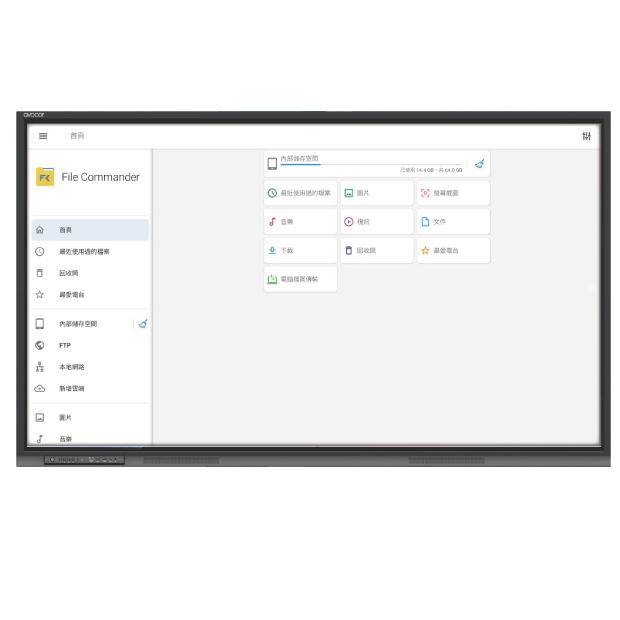

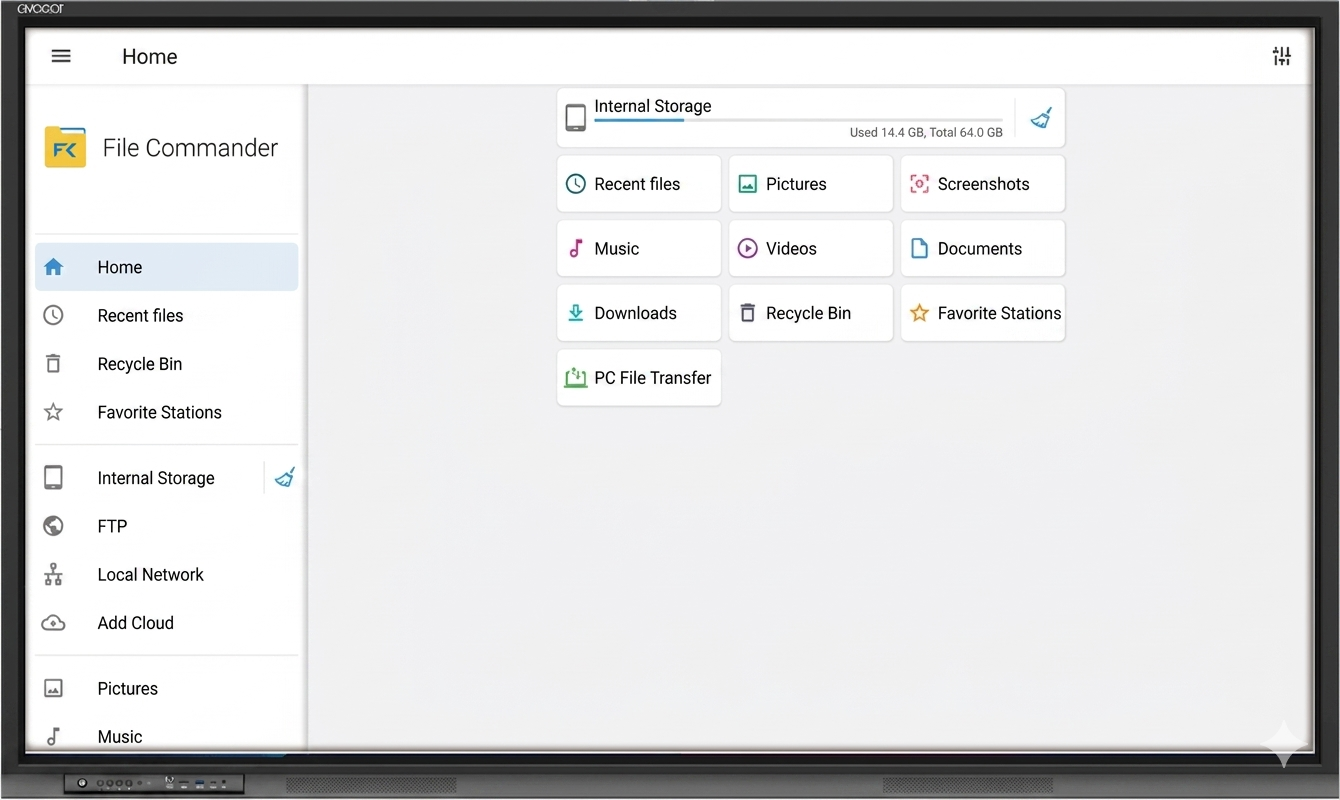

One-Stop File Control Anytime, Anywhere
Featuring the built-in File Commander app, you can manage all your files across smartphones, computers, and cloud storage more easily and efficiently. Access, organize, and share your digital content effortlessly from anywhere.

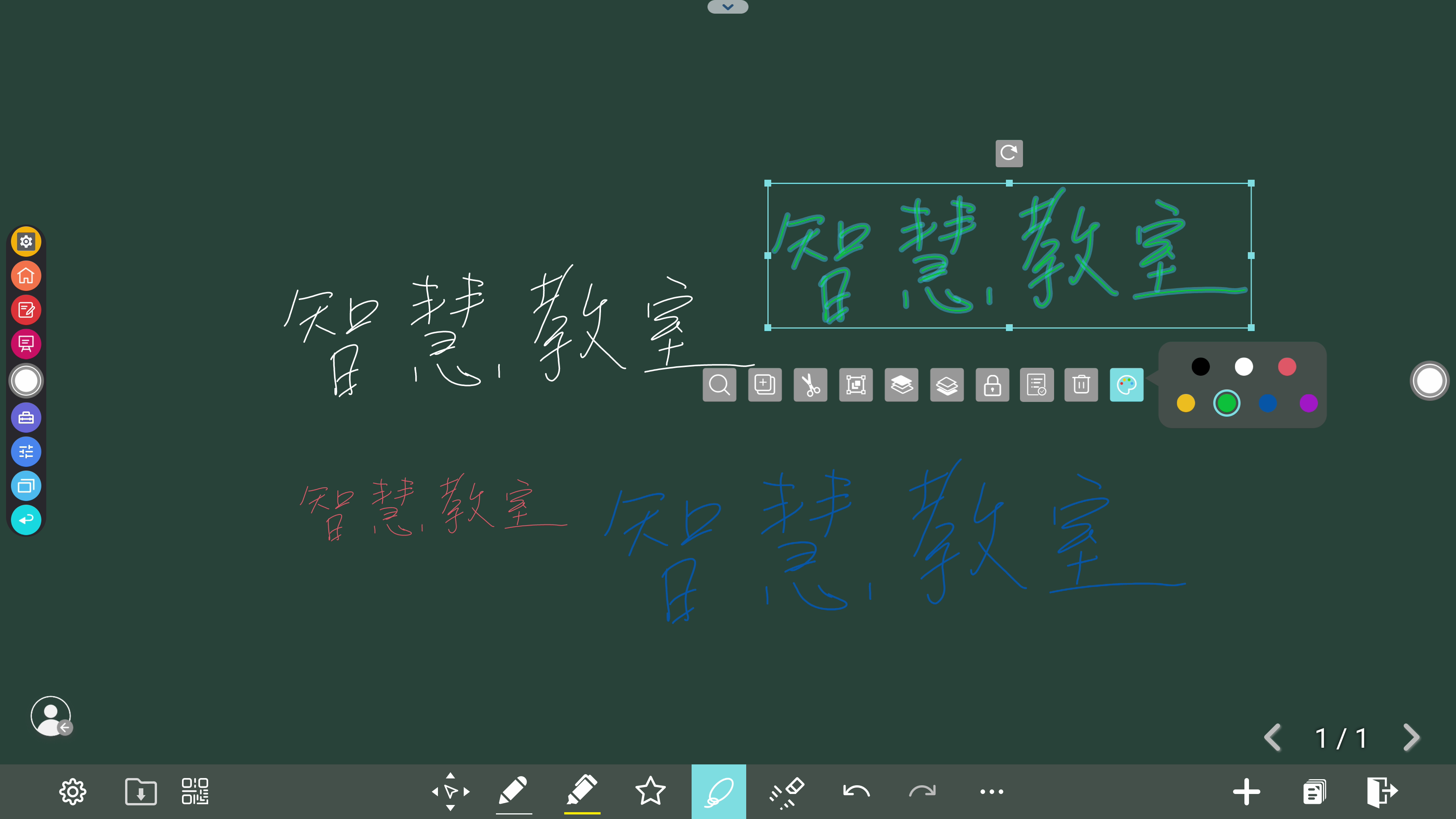

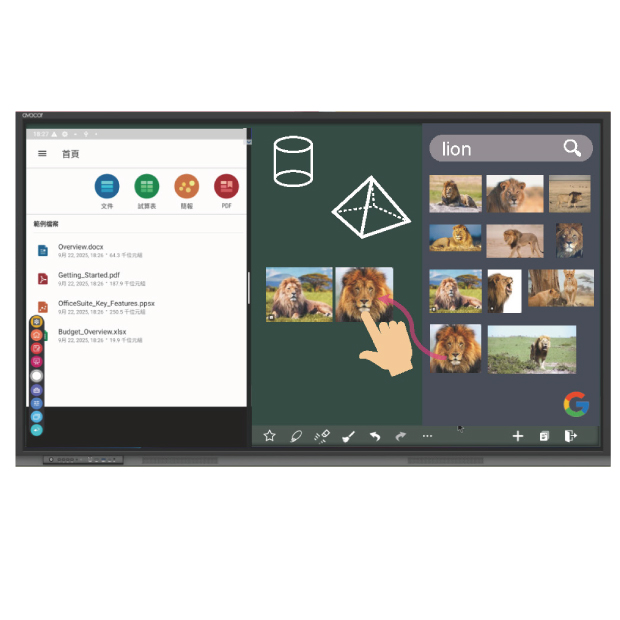

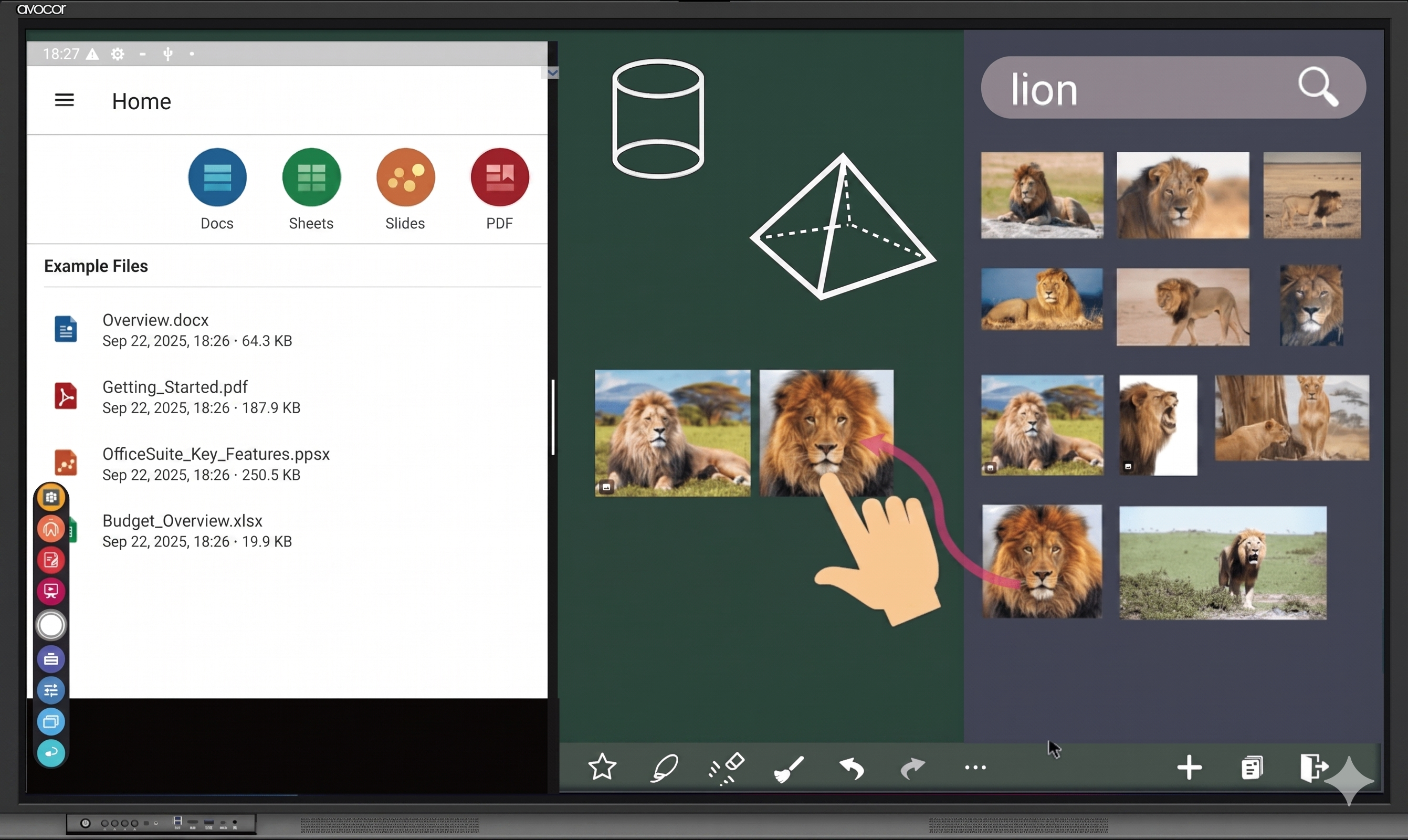

Highly Interactive Learning Environment: Whiteboard
Enjoy app split-screen capabilities with adjustable display areas. Practical AI tools offer instant recognition of hand-drawn geometric shapes. Take your classroom to the cloud to expand your teaching space, quickly search online content, or retrieve lesson files saved directly on the whiteboard or cloud storage.
Low Blue Light & Anti-Glare for Eyecare and Comfort
Low blue light technology protects eye health and effectively reduces eye strain. The anti-glare panel ensures screen content remains sharp and visible under any lighting environment, delivering a more comfortable viewing experience.
Specifications
| Model | AVT-V8610, AVT-V861T |
| Effective Screen Size (Inches) | 86" (85.6"), Display Area:1895.04*1065.96mm |
| LCD Brightness | cd/m² |
| Contrast Ratio | 4000 : 1 (Typical), Dynamic Contrast 50000 : 1 |
| 8 ms (typ.) | |
| Resolution | 3840 * 2160 Pixels (4K Ultra HD) |
| Display Color / Aspect Ratio | 1.07 Billion Colors / 16 : 9 |
| Backlight Module | DLED (Direct-lit LED) |
| Viewing Angle (Panel) | 178° |
| Light Source Lifespan | Standard Mode: 30,000 Hours; Eco Mode: 50,000 Hours |
| Touch Surface Material | Tempered Glass, 9H Hardness, 3.2mm Thickness, High Bonding |
| Glass Surface Technology | Zero-bonding , AG optical anti-glare and explosion-proof tempered glass, 3.2mm thick, high sealing, transparency >88%, glass haze 2%~5%. |
| Touch Technology | Infrared (IR) Optical Touch |
| Touch Points | Android: 32 Points / Windows: 40 Points |
| Touch Tool | Stylus or Finger |
| Touch Resolution | 32767*32767 |
| Touch Single-Point Scan Time | ≤ 10 ms |
| Touch Accuracy | Center display area 90% ±1mm; Surrounding display area 10% ±2mm |
| Smart Thermal Protector | Overheat Auto-Sleep Technology |
| Built-in System | 8-Core CPU, Android 14 Chipset, 8GB RAM, 192GB Storage Capacity |
| Wi-Fi / Bluetooth (Optional) | Wi-Fi 6：IEEE 802.11a/b/g/n/ac/ax，Bluetooth 5.2 |
| Storage Temp. / Humidity | -20°C ~ 60°C / 20% ~ 90% |
| Operating Temp. / Humidity | 0°C ~ 40°C / 20% ~ 80% |
| Speakers | Front stereo speakers 6Ω 20W ×2 |
| Front Input Ports | HDMI 2.0 ×1, Touch (3.0 Type-B) ×1, USB 3.0 Type-A ×1, Type-C (2.0 / 100W Power Delivery) ×1, MIC In ×1 |
| Audio/Video Input (Rear) | HDMI In 2.0 ×2, DP In (DP 1.2) ×1, Type-C (2.0 / 5V 3A) ×1 |
| Audio/Video Output (Rear) | Line Out ×1, HDMI Out 2.0 ×1, SPDIF Out ×1 |
| Other I/O Ports | USB 3.0 (Android) ×1, USB 3.0 (Public) ×2, Touch USB (3.0 Type-B) ×3, RS232 ×1, OPS Slot ×1, RJ45 ×2, Type-C (For Camera / USB 2.0) ×1, AC In ×1, AC Out ×1 |
| Supported Multimedia Formats |
Images:JPEG, BMP, PNG |
| Working Voltage | AC 100-240V, 50 / 60Hz |
| Power Consumption | 450W; Standby / Passive Mode: 0.5W |
| Dimensions (Product) | 1981*1190*110mm |
| Package Dimensions | 2119*228*1290mm |
| Weight | Net Weight: 65 kg / Gross Weight: 82 kg |
| Installation Method (Optional) | Wall Mount (VESA Mount 800*400mm) / Mobile Stand |
| Dual OS Support | Windows / Android; Supports Whiteboard Mode, Screen Sharing, Signal Preview, Front Speakers, HDMI Output, Type-C port for tablet/laptop projection and charging, 2.4G / 5G Dual-Band Wireless Projection (Supports Android / iOS / Windows / Mac / ChromeOS). |
| Product Features | Cross-OS screen mirroring, simultaneous mirroring for multiple devices, wireless reverse touch-back control during full Windows/Mac mirroring, scheduled power on/off, auto-signal detection, auto-sleep upon no signal, direct multimedia playback via USB, USB 3.0 camera support, remote control included, EDLA Certified. |
-
Front Type-C Power Delivery Specifications: 20V/5A, 12V/3A, 5V/3A.
-
The above specifications and equipment are subject to change based on the actual machine. The company reserves the right to make modifications without prior notice.
